Details

All parts in each kit are matched to ensure superior quality, fit, finish and performance
Oil pump and cam plate are precision-machined from billet aluminum with a blue anodized finish
Passage plugs removable for servicing
Independent scavenge sections for the flywheel cavity and cam chest
Debris screens in both scavenge pickups
Increased oil flow capacity on both the feed and scavenge sides
Adjustable Pressure Relief Valve is adjustable with unit installed in engine
Magnet in cam chest to help to stop debris from entering oil pump
S&S Quickee Pushrods with finished pushrod tubes
S&S premium tappets
Billet aluminum tappet cuffs have a hard-anodized black coating and are stronger than stock to eliminate distortion
Improved tappet stability in high-lift and high-rpm situations
Provides improved cam timing accuracy and eliminates the stock cam chain tensioner
Includes outer drive gears, all gaskets, bearings, and hardware required for a complete installation
Made in the USA

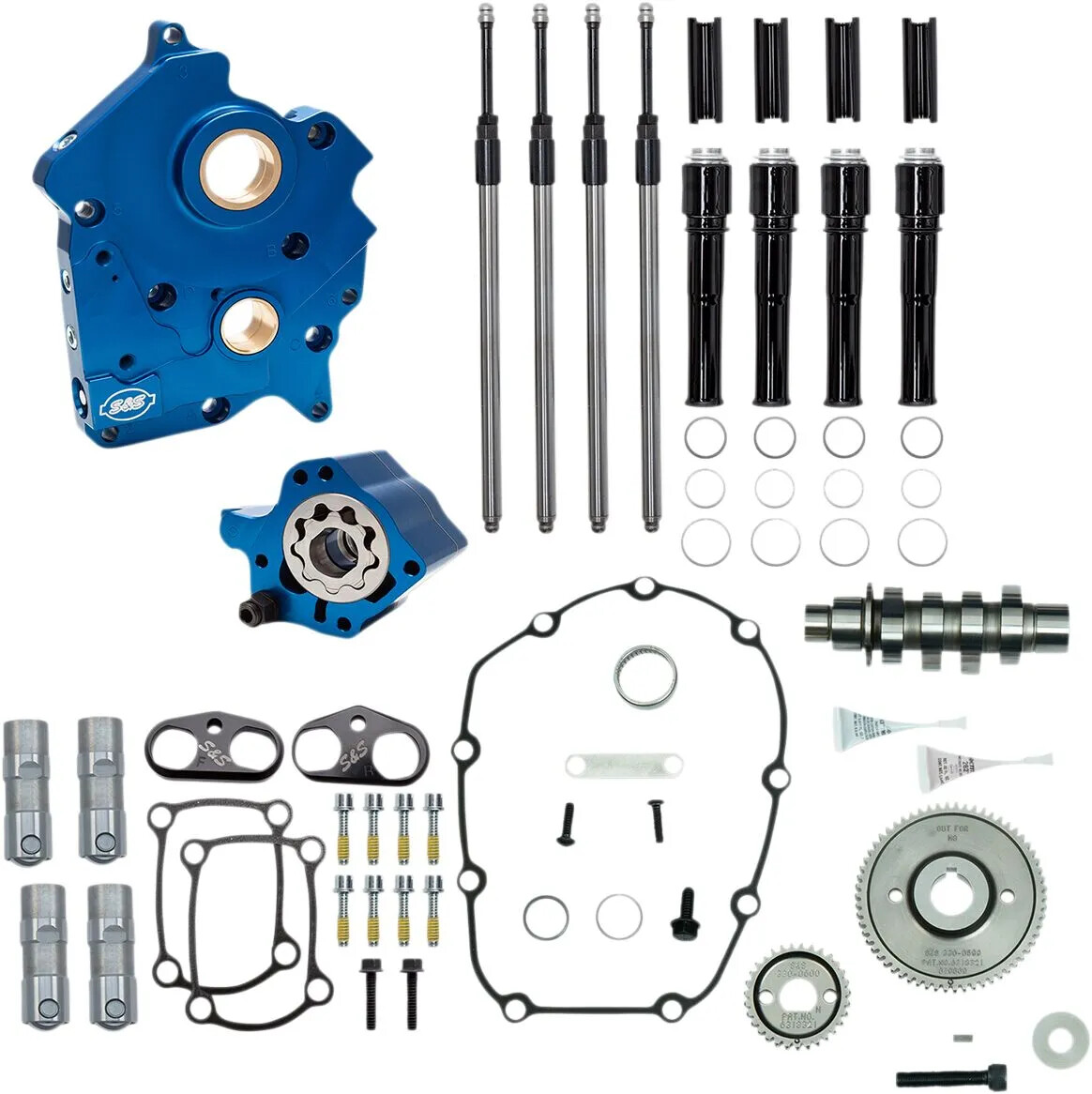

475 cam is a bolt-in 100 horsepower cam. Kit Includes: • Oil Pump Screw Kit • 475G Camshaft • Cam Drive Gear Kit • 31 Tooth Pinion Gear • Cam Gear Installation Kit • Quickee Pushrod Kit with Gloss Black Covers • Tappet Cuffs Lifter Guide • 3" S&S® Blue and White Logo Decal • Cam Plate Support Assembly • Oil Cooled Oil Pump Assembly • Hydraulic Precision Tappet Set • 1 oz Torco® Engine Assembly Lube

Brand

S&S CYCLE

Vendor Part Number

310-1014A

Application

Oil Cooled

Exhaust Close

28,5° Front, 20,2° Rear

Exhaust Duration

263,9° Front, 252,5° Rear

Exhaust Lift

0,475"

Exhaust Lift at TDC

0,208" Front, 0,170" Rear

Exhaust Lobe Centerline

103,5° Front, 106,0° Rear

Exhaust Open

55,5° Front, 52,2° Rear

Features

Gloss Black Pushrod Tubes

Grind

475G

Intake Close

27,2° Front, 31,2° Rear

Intake Duration

213,5° Front, 213,5° Rear

Intake Lift

0,475"

Intake Lift at TDC

0,107" Front, 0,093" Rear

Intake Lobe Centerline

100,5° Front, 104,5° Rear

Intake Open

6,2° Front, 2,2° Rear

Model

475 HP

Product Name

Camchest Kit

Type

Gear

Units

Kit

Daugiau informacijos

Daugiau informacijos
Svoris	5.660000
Aukštis	140
Plotis	290
Prekės ženklas	S+S CYCLE
Ilgis	430
Prieinamumas	Centriniame sandėlyje
Tiekėjo nuoroda	310-1014A
Išleidimo anga	Ne
Išsiunčiama / Išsiunčiame	1 darbo diena
Kampanijos	Outlet
Tinkamumo lentelė (1 kat.)	HARLEY DAVIDSON FLFBS 1868 ABS SOFTAIL FAT BOY 114 2021-2022 FLHC 1750 ABS SOFTAIL HERITAGE CLASSIC 107 2021-2022 FLHCS 1868 ABS SOFTAIL HERITAGE CLASSIC 114 2021-2022 FLHR 1750 ABS ROAD KING 107 2021-2022 FLHRXS 1868 ABS ROAD KING SPECIAL 114 2021-2022 FLHT 1750 ABS ELECTRA GLIDE STANDARD 107 2021-2022 FLHT 1868 ABS ELECTRA GLIDE REVIVAL 114 2021 FLHTCUTG 1868 ABS TRI GLIDE ULTRA 114 2021-2022 FLHTCUTGSE 1923 ABS TRI GLIDE CVO 117 2022 FLHTCUTGSE 1923 ABS TRI GLIDE ULTRA CVO 117 2021 FLHX 1750 ABS STREET GLIDE 107 2021-2022 FLHXS 1868 ABS STREET GLIDE SPECIAL 114 2021-2022 FLHXS 1868 ABS STREET GLIDE SPECIAL 114 ARCTIC BLAST LIMITED 2021 FLHXSE 1923 ABS STREET GLIDE CVO 117 2022 FLHXST 1923 ABS STREET GLIDE ST 117 2022 FLRT 1868 ABS FREEWHEELER 114 2021-2022 FLSB 1750 ABS SOFTAIL SPORT GLIDE 107 2021-2022 FLSL 1750 ABS SOFTAIL SLIM 107 2021 FLTRX 1750 ABS ROAD GLIDE 107 2021-2022 FLTRXS 1868 ABS ROAD GLIDE SPECIAL 114 2021-2022 FLTRXSE 1923 ABS ROAD GLIDE CVO 117 2022 FLTRXST 1923 ABS ROAD GLIDE ST 117 2022 FXBB 1750 ABS SOFTAIL STREET BOB 114 2021-2022 FXBB 1750 SOFTAIL STREET BOB 114 2021 FXBRS 1868 ABS SOFTAIL BREAKOUT 114 2021-2022 FXFB 1750 ABS SOFTAIL FAT BOB 107 2021 FXFBS 1868 ABS SOFTAIL FAT BOB 114 2021-2022 FXLRS 1868 ABS SOFTAIL LOW RIDER S 114 2021 FXLRS 1923 ABS SOFTAIL LOW RIDER S 117 2022 FXLRST 1923 ABS SOFTAIL LOW RIDER ST 117 2022 FXST 1750 ABS SOFTAIL STANDARD 2021-2022 FXST 1750 SOFTAIL STANDARD 2021
